How to Install a Threaded Flange Correctly: A Complete Guide for Safe and Reliable Connections

Threaded flanges are widely used in low-pressure and medium-pressure piping systems because they can be installed without welding. This makes them an excellent choice for maintenance projects, temporary piping systems, hazardous environments where hot work is restricted, and applications requiring easy disassembly.

However, even though threaded flanges are relatively simple to install, improper installation can lead to leakage, thread damage, pressure loss, and reduced service life. Understanding how to install threaded flange correctly is essential for ensuring safe operation and minimizing maintenance costs.

This guide explains every step of threaded flange installation, from preparation to final inspection. Whether you are an engineer, maintenance technician, contractor, or industrial buyer evaluating installation requirements, this article provides practical guidance to help you achieve reliable flange connections.

What Is a Threaded Flange?

A threaded flange (also called a screwed flange) features internal threads that allow it to be screwed directly onto externally threaded pipe without welding.

Compared with welded flanges, threaded flanges offer several advantages:

• No welding equipment required

• Faster installation

• Easier replacement during maintenance

• Suitable for hazardous areas where welding is prohibited

• Lower installation costs

Threaded flanges are commonly used in:

• Water treatment systems

• Compressed air pipelines

• Fire protection systems

• Chemical processing

• Oil & gas utility piping

• Instrumentation lines

Although threaded flanges simplify installation, they are generally recommended for low to moderate pressure and temperature applications rather than severe service conditions.

Tools and Materials Needed for Threaded Flange Installation

Before beginning threaded flange installation, prepare all necessary tools and inspect every component.

Required tools

• Pipe wrench

• Adjustable wrench

• Torque wrench

• Thread cleaning brush

• PTFE tape or thread sealant

• Clean cloth

• Alignment tools (if necessary)




Required materials

• Threaded flange

• Threaded pipe

• Gasket

• Bolts and nuts

• Appropriate lubricant (optional)

Always verify that the flange pressure rating, thread standard (NPT or BSP), material, and dimensions match the piping system specifications.

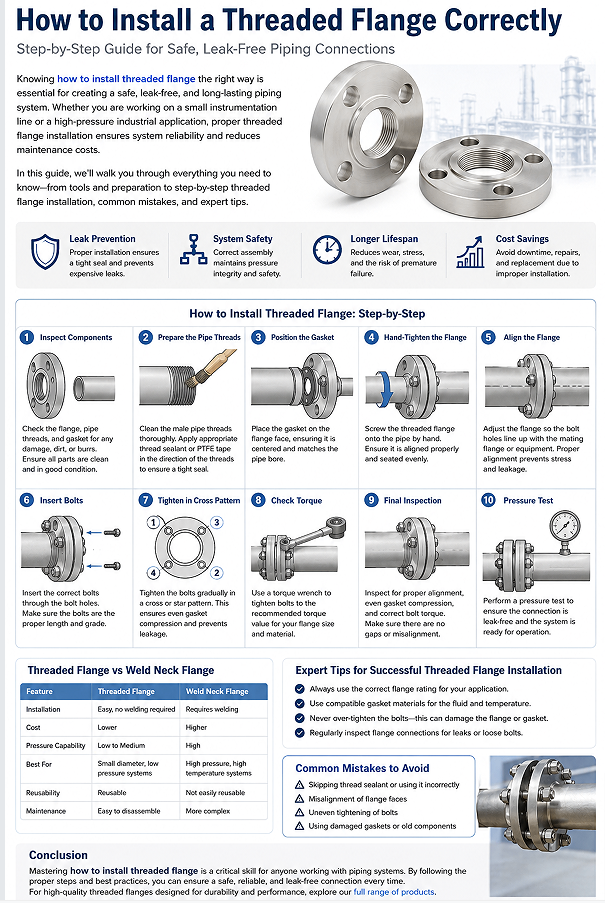

How to Install a Threaded Flange: Step-by-Step Guide

Step 1: Inspect All Components

Carefully inspect the flange, pipe threads, gasket, bolts, and nuts.

Check for:

• Damaged threads

• Rust or corrosion

• Dirt or debris

• Surface scratches

• Bent bolts

Never install damaged components, as even minor thread defects can create leakage paths.

Step 2: Clean the Pipe Threads

Clean both male and female threads thoroughly using a wire brush or thread cleaner.

Remove:

• Oil

• Dirt

• Metal chips

• Paint

• Old thread sealant

Clean threads allow better engagement and improve sealing performance.

Step 3: Apply Thread Sealant

Apply an appropriate sealing material according to the system requirements.

Common options include:

• PTFE thread tape

• Liquid thread sealant

• Pipe joint compound

Wrap PTFE tape in the same direction as the thread rotation to prevent unraveling during installation.

Avoid excessive sealant, which may enter the piping system.

Step 4: Screw the Threaded Flange onto the Pipe

Carefully thread the flange onto the pipe by hand.

Ensure that:

• Threads engage smoothly

• No cross-threading occurs

• The flange rotates freely

Never force the flange if resistance is encountered early. Remove it and inspect the threads before trying again.

Step 5: Position the Flange Correctly

Rotate the flange until the bolt holes align with the mating flange.

Proper alignment helps prevent:

• Pipe stress

• Uneven gasket compression

• Bolt misalignment

• Future leakage

Avoid using excessive force to achieve alignment.

Step 6: Install the Gasket

Place the gasket evenly between the two flange faces.

The gasket should:

• Be centered

• Match the flange size

• Have no folds or damage

Incorrect gasket positioning is one of the most common causes of leakage.

Step 7: Insert Bolts and Tighten Evenly

Insert all bolts before tightening.

Use a crisscross (star) tightening sequence rather than tightening bolts one by one around the flange.

This method provides:

• Even gasket compression

• Better sealing performance

• Reduced flange distortion




Step 8: Tighten Bolts to the Recommended Torque

Use a calibrated torque wrench.

Follow the manufacturer's recommended torque specifications based on:

• Flange size

• Bolt grade

• Gasket type

• Operating pressure

Over-tightening may damage the gasket or deform the flange.

Under-tightening may result in leakage during operation.

Step 9: Perform Final Inspection

Before pressurizing the system, inspect the installation carefully.

Check:

• Bolt tightness

• Flange alignment

• Gasket visibility

• Thread engagement

• Overall assembly

Everything should appear symmetrical with no visible gaps.

Step 10: Conduct Pressure Testing

The final step of threaded flange installation is pressure testing.

Depending on the application, perform:

• Hydrostatic testing

• Pneumatic testing

• Leak testing

Inspect the connection for:

• Fluid leakage

• Air leakage

• Pressure drop

If leakage is detected, release pressure before retightening or replacing components.

Common Mistakes During Threaded Flange Installation

Even experienced technicians occasionally make installation errors.

Avoid these common mistakes:

Cross-threading

Misaligned threads permanently damage both the flange and pipe.

Using Too Much Thread Sealant

Excess sealant may contaminate valves, pumps, or instrumentation.

Over-Tightening

Applying excessive torque can:

• Crack the flange

• Crush the gasket

• Damage threads

Poor Flange Alignment

Misalignment introduces stress into the piping system, reducing long-term reliability.

Reusing Damaged Gaskets

Old or compressed gaskets rarely provide an effective seal after removal.

Threaded Flange vs Weld Neck Flange Installation

Understanding the differences helps buyers choose the right flange type.

If frequent maintenance or field installation is expected, threaded flanges are often the more practical choice.

Best Practices for Reliable Threaded Flange Installation

For the best results, experienced engineers recommend the following:

• Use flanges manufactured to recognized international standards.

• Confirm thread compatibility before installation.

• Choose gasket materials suitable for the operating medium.

• Apply sealant evenly without blocking the pipeline.

• Tighten bolts gradually using a cross pattern.

• Always verify torque values with a calibrated torque wrench.

• Perform pressure testing before putting the system into service.

• Inspect flange connections regularly as part of preventive maintenance.

Following these practices helps maximize service life while minimizing downtime.

Why Proper Installation Matters

Correct installation directly affects system performance.

A properly installed threaded flange provides:

• Leak-free operation

• Improved equipment safety

• Reduced maintenance costs

• Longer service life

• Easier future disassembly

• Better system reliability

Poor installation, by contrast, can lead to unexpected shutdowns, costly repairs, and safety risks.

Conclusion

Learning how to install threaded flange correctly is essential for anyone working with industrial piping systems. While threaded flanges are easier to install than welded alternatives, proper preparation, thread sealing, alignment, torque control, and pressure testing are all critical steps for achieving a dependable connection.

Whether you are specifying components for a new project or maintaining an existing pipeline, following the recommended threaded flange installation procedures will help ensure safe, efficient, and long-lasting performance. Choosing high-quality threaded flanges that comply with international standards further improves reliability and reduces lifecycle maintenance costs.
